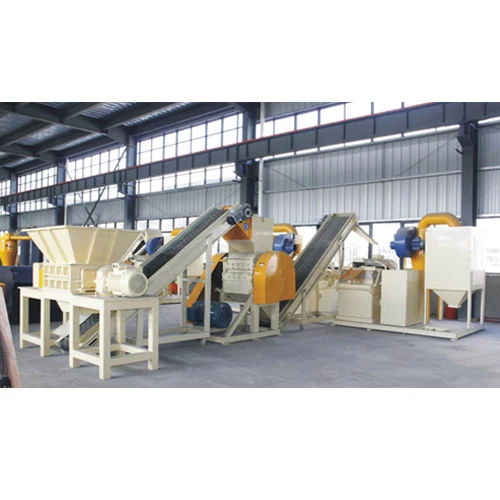

QJ-1200A

Radiator recycling system

QJ-1200A is a radiator recycling line that recovers copper, aluminum and iron. Two-stage dry crushing is followed by magnetic and air separation, with negative-pressure operation and pulse dust collection.

Working range0.5-20 mm
Power120.5 kW
Processing capacity800-1200 kg/h
Request a quotationProduct handbook

4 pages · English / 中文 · Preview handbook ↓

Designed for the task

01

Two-stage dry crushing

02

Magnetic and air separation

03

Negative-pressure dust control

Application

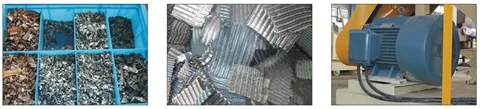

Radiator material recovery

Used to recover metal from discarded radiators. Match the equipment to radiator construction, copper-tube spacing, material condition and the required recovery process.

Select your configuration

What to include in your enquiry

  • Feed material composition and sample photos
  • Required hourly output and operating schedule
  • Available power supply and installation space
  • Required separation process and destination

Technical specifications

Technical specifications

SpecificationValue
ModelQJ-1200A
Power120.5 kW
Voltage380 V
Working range0.5-20 mm
Blades40+14
Processing capacity800-1200 kg/h
Weight12000 kg

Talk to SENDUO

Put QJ-1200A to work.

Tell us about your material and requirements. Our team will help match the configuration.

Discuss this product →

Product handbook

Features, specifications, product views and SENDUO contact details.

Download PDF
1 / 4100%Open handbook

Loading product handbook…

Explore the range

View category
QJ-1200A Radiator recycling system
