SENDUO · QJ & 918 series

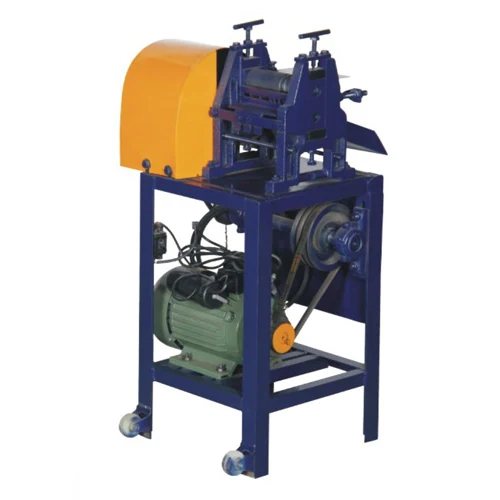

918-KPJ

Flat-cable stripping machine

918-KPJ is designed for the outer sheath of flexible flat wire, socket leads and round multicore cable. It accommodates two-, three- and four-core cable constructions.

Working range1-12 mm
Power1.5 kW
Stripping speed30 m/min
Request a quotationProduct handbook

4 pages · English / 中文 · Preview handbook ↓

Designed for the task

01

Flat-wire sheath removal

02

Two-, three- and four-core cable applications

03

Compact cable processing arrangement

Application

Cable stripping & conductor recovery

Used to open insulation and prepare conductors for recovery. Match the feed position and cutting configuration to the cable’s outside diameter, insulation material and construction.

Select your configuration

What to include in your enquiry

  • Cable outside diameter and insulation type
  • Armored or unarmored cable construction
  • Available voltage, frequency and phase
  • Expected daily throughput and destination

Technical specifications

Technical specifications

SpecificationValue
Model918-KPJ
Power1.5 kW
Voltage220/380 V
Working range1-12 mm
Blades1
Feed openings6
Stripping speed30 m/min
Dimensions40 × 40 × 88 cm
Weight56 kg

Talk to SENDUO

Put 918-KPJ to work.

Tell us about your material and requirements. Our team will help match the configuration.

Discuss this product →

Product handbook

Features, specifications, product views and SENDUO contact details.

Download PDF
1 / 4100%Open handbook
